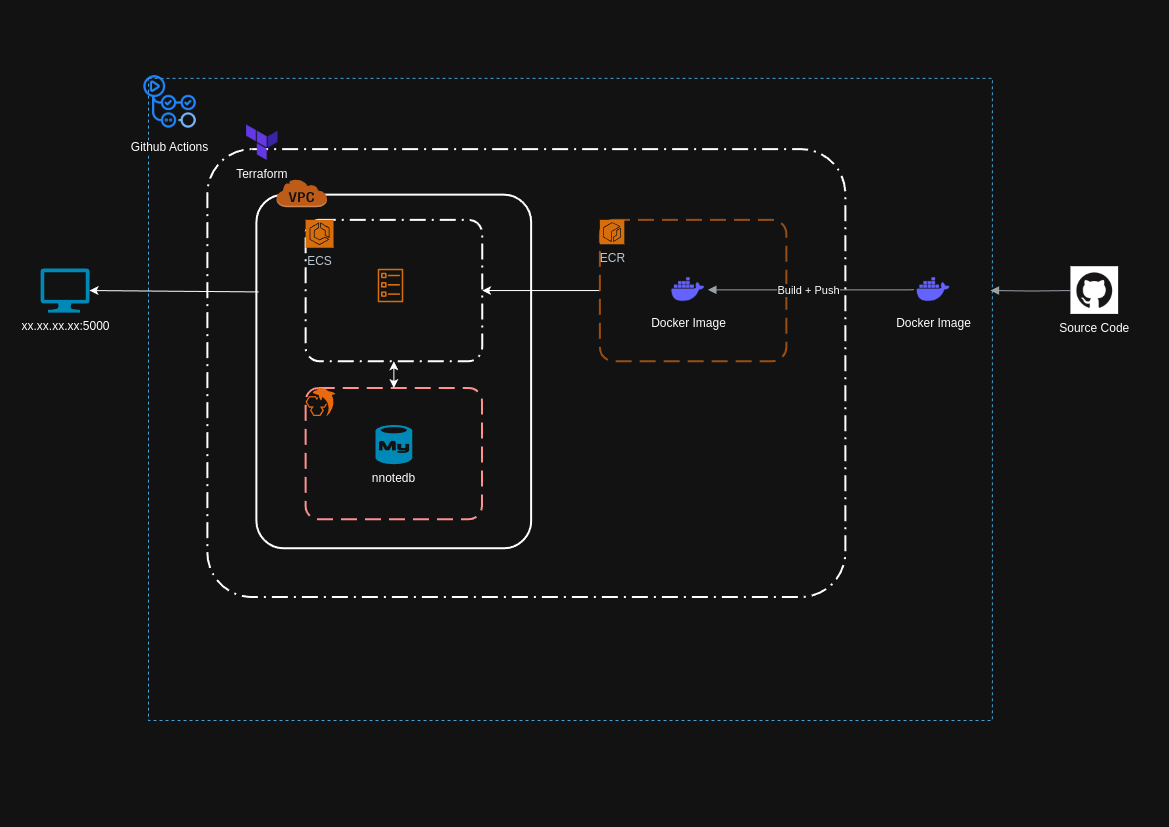

Stage 0: Game plan

I split this project into five stages.

  1. Stage 1: Creating the app
  2. Stage 2: Host locally
  3. Stage 3: Hosting on AWS using Console
  4. Stage 4: Hosting on AWS using Terraform
  5. Stage 5: Automate the deployment using Terraform and Github Actions

A Reference List at the end of this page includes all the documents I consulted throughout this project.

Stage 1: Creating Nnote

Thanks to Tech With Tim for this details tutorial

I used a Python virtual environment to track all dependencies via requirements.txt, facilitating the subsequent creation of a Docker image.

python -m venv .\venv
./env/scripts/activate

pip freeze > requirements.txt


After becoming familiar with Python Flask, I challenged myself to add some features to this app. A password reset function seemed useful.


First, I added a new button to the nav-bar in base.html

<!--website/templates/base.html-->
<div class="collapse navbar-collapse" id="navbar">
  <div class="navbar-nav">
    {% if user.is_authenticated %}
    <a class="nav-item nav-link" id="home" href="/">Home</a>
    <a class="nav-item nav-link" id="resetPassword" href="/reset-password"
      >Reset Password</a
    >
    <a class="nav-item nav-link" id="logout" href="/logout">Logout</a>
    {% else %}
    <a class="nav-item nav-link" id="login" href="/login">Login</a>
    <a class="nav-item nav-link" id="signUp" href="/sign-up">Sign Up</a>
    {% endif %}
  </div>
</div>


Then, I created a new page, reset-password.html

<!--website/templates/reset-password.html-->
{% extends "base.html" %} {% block title %}Reset Password{% endblock %} {% block
content %}
<form method="POST">
  <h3 align="center">Reset Password</h3>
  <div class="form-group">
    <label for="password1">Current Password</label>
    <input
      type="password"
      class="form-control"
      id="current_password"
      name="current_password"
      placeholder="Enter current password"
    />
  </div>
  <div class="form-group">
    <label for="password2">New Password</label>
    <input
      type="password"
      class="form-control"
      id="new_password1"
      name="new_password1"
      placeholder="Enter new password"
    />
  </div>
  <div class="form-group">
    <label for="password2">New Password (Confirm)</label>
    <input
      type="password"
      class="form-control"
      id="new_password2"
      name="new_password2"
      placeholder="Re-enter new password"
    />
  </div>
  <br />
  <button type="submit" class="btn btn-primary">Submit</button>
</form>
{% endblock %}


Finally, I added a new route to auth.py to handle the logic.

#website/auth.py
@auth.route('/reset-password', methods=['GET', 'POST'])
def reset_password():
	if request.method == 'POST':
		current_password = request.form.get('current_password')
		new_password1 = request.form.get('new_password1')
		new_password2 = request.form.get('new_password2')

		if check_password_hash(current_user.password, current_password) == False:
			flash('Incorrect password!', category='error')
		else:
			if len(new_password1) < 7:
				flash('Password must be at least 7 characters.', category='error')
			elif new_password1!=new_password2:
				flash('Password don\'t match', category='error')
			else:
				current_user.password = generate_password_hash(new_password1, method='pbkdf2:sha256')
				db.session.commit()
				flash('Password  reset succesfully! Please login again.')
				logout_user()
				return redirect(url_for('auth.login'))
	return render_template('reset_password.html', user=current_user)

Stage 2: Hosting Locally

2a. Workflows:

  1. Create DB
  2. Run the app with Python
  3. Integrate Gunicorn
  4. Build app as Docker

MySQL Server SQLite is lightweight and good for small project but AWS doesn’t support this engine officially. I chose MySQL ¹ because it’s cost-effective, user friendly and supported by AWS.

Install MySQL and MySQL Workbench

Username: root
Password: password

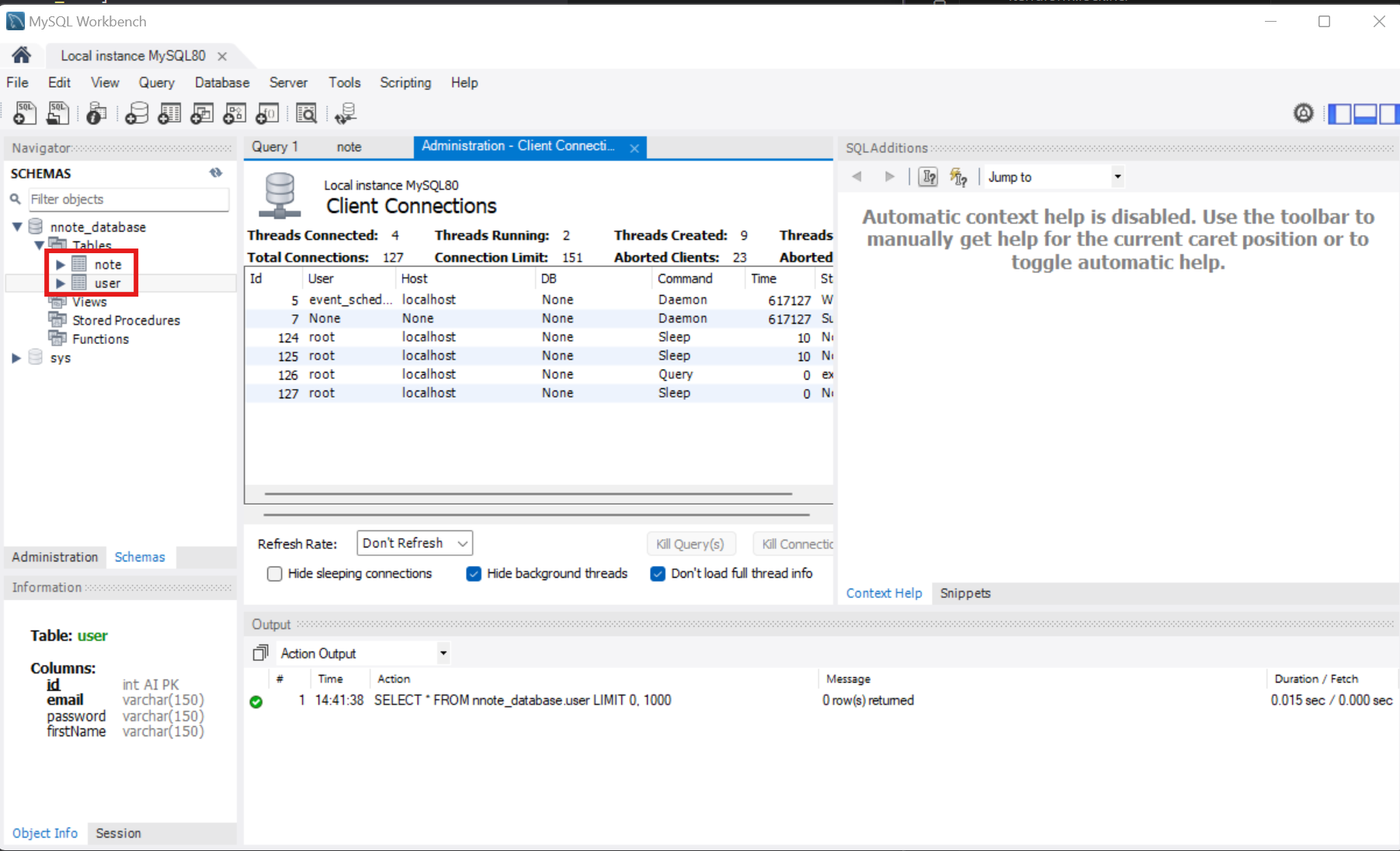

Update Connection String and Database Authentication To have nnote-app interact with MySQL server, I used sqlalchemy


Install sqlalchemy package

pip install sqlalchemy_utils


Modified __init__.py

#website/__init__.py
from sqlalchemy_utils import database_exists, create_database

#------------------------------------------------------------------

db = SQLAlchemy()
DB_USERNAME = "root"
DB_PASSWORD = "password"
DB_HOST = "host.docker.internal" # run from inside Docker
DB_NAME = "nnote_database"

#------------------------------------------------------------------

def create():
	app = Flask(__name__)
	app.config['SECRET_KEY'] = 'mysecretkey'
	url = f"mysql+pymysql://{DB_USERNAME}:{DB_PASSWORD}@{DB_HOST}/{DB_NAME}"
	app.config['SQLALCHEMY_DATABASE_URI'] = url

#------------------------------------------------------------------

def create_db(url, app):
    # Check if the database exists, if not, create it
    print('create_database is running')
    if not database_exists(url):
        create_database(url)
        # Use the app context to create all tables
        with app.app_context():
            db.create_all()
            print('Created Database!')

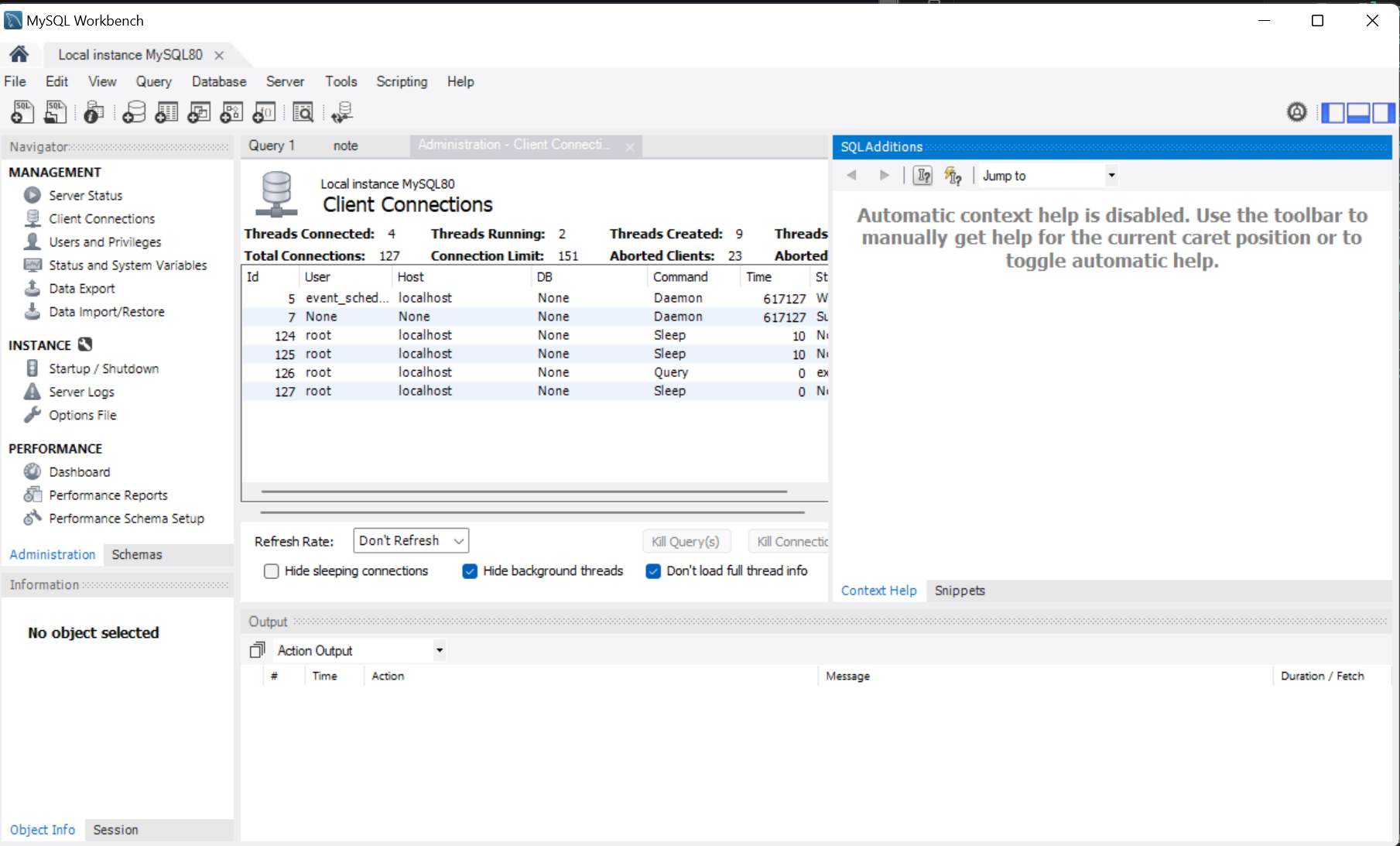

I will do a quick test to see if my nnote-app can interact with the DB

python .\main.py

… and voila, the nnote-app succesfully connect to MySQL Database on local and created 2 tables: user and note just as how I wanted. image

Now, all we need to to pack all the dependencies into requirements.txt and get ready to build a Docker image. But before that, I need Gunicorn

2b. Gunicorn:

While Flask is great for development, its server is not suitable for concurrent traffics in production envrinonment. I choose Gunicorn ² to handle Flask’s shortcoming.


To install…

pip install gunicorn


export dependencies…

pip freeze > requirements.txt

Docker Install Docker

I create Dockerfile under .\ using gunicorn as my WGSI

FROM python:3.11

WORKDIR /app

COPY . .

RUN pip3 install -r requirements.txt

EXPOSE 5000

CMD ["gunicorn", "-b", "0.0.0.0:5000", "website:create_app()"]

2c. Testing:

build and run Docker

docker build -t nnote-app .
docker run -p 5000:5000 nnote-app

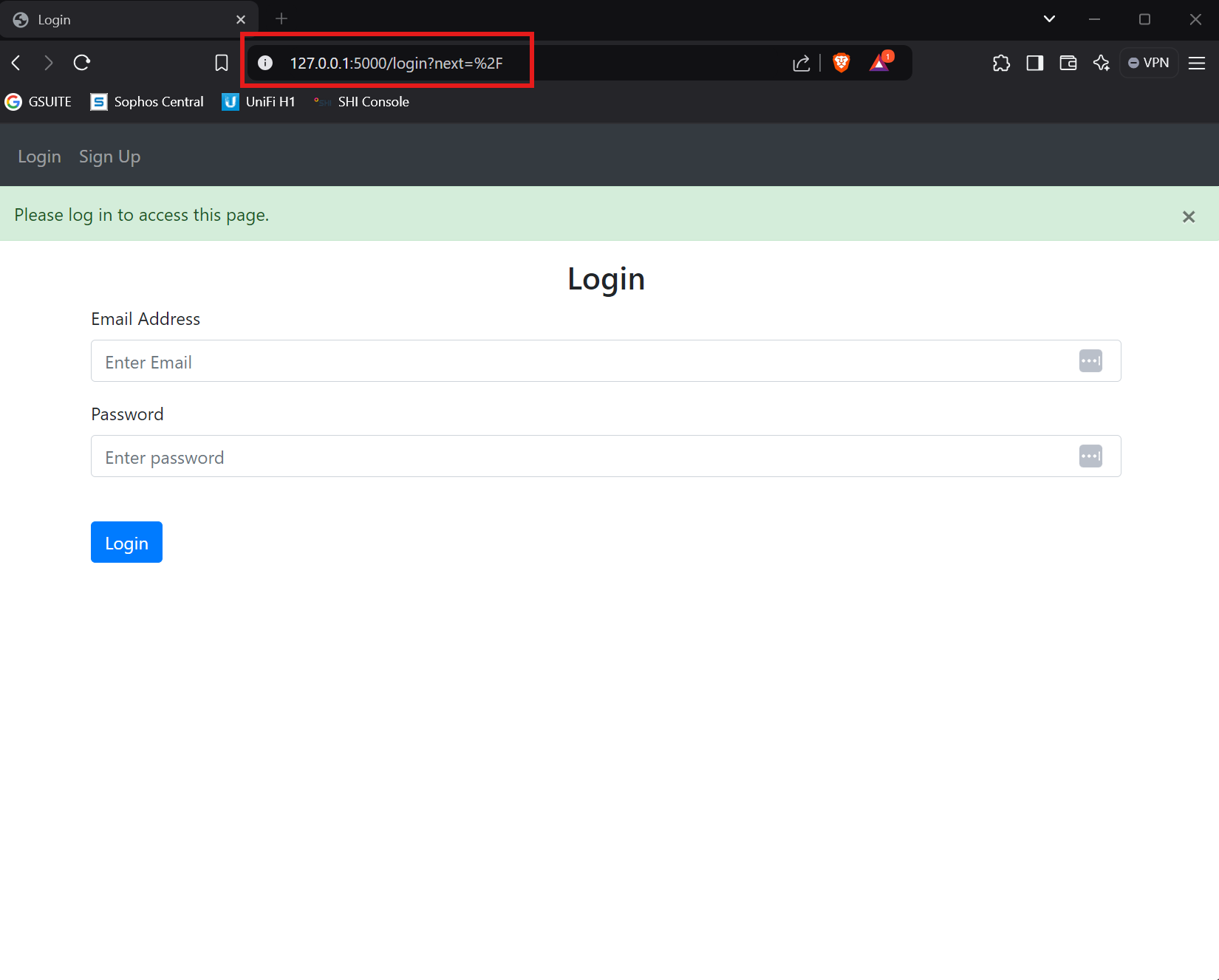

Docker Image is built succesfully, since I exposed port 5000 from inside the Docker container to port 5000 outside of the container, the correct URL to my nnote-app should be localhost:5000 or http://127.0.0.1:5000 image

Stage 2 is completed! I’m excited for the next one – AWS Cloud.

Stage 3: Hosting on AWS using Console

3a. Workflows:

What resources that I need on AWS: a MySQL Server, ECR->ECS->Task Definitaion->Service->Task(point back to my container image on ECR)

Database

  1. Create a MySQL db by navigating to AWS Console -> Amazon RDS -> Select Create database
  2. Configure:
    • Engine options = MySQL
    • Templates = Free tier
    • Master username = admin
    • Master password = password
    • Public access = Yes
  3. Click Create database

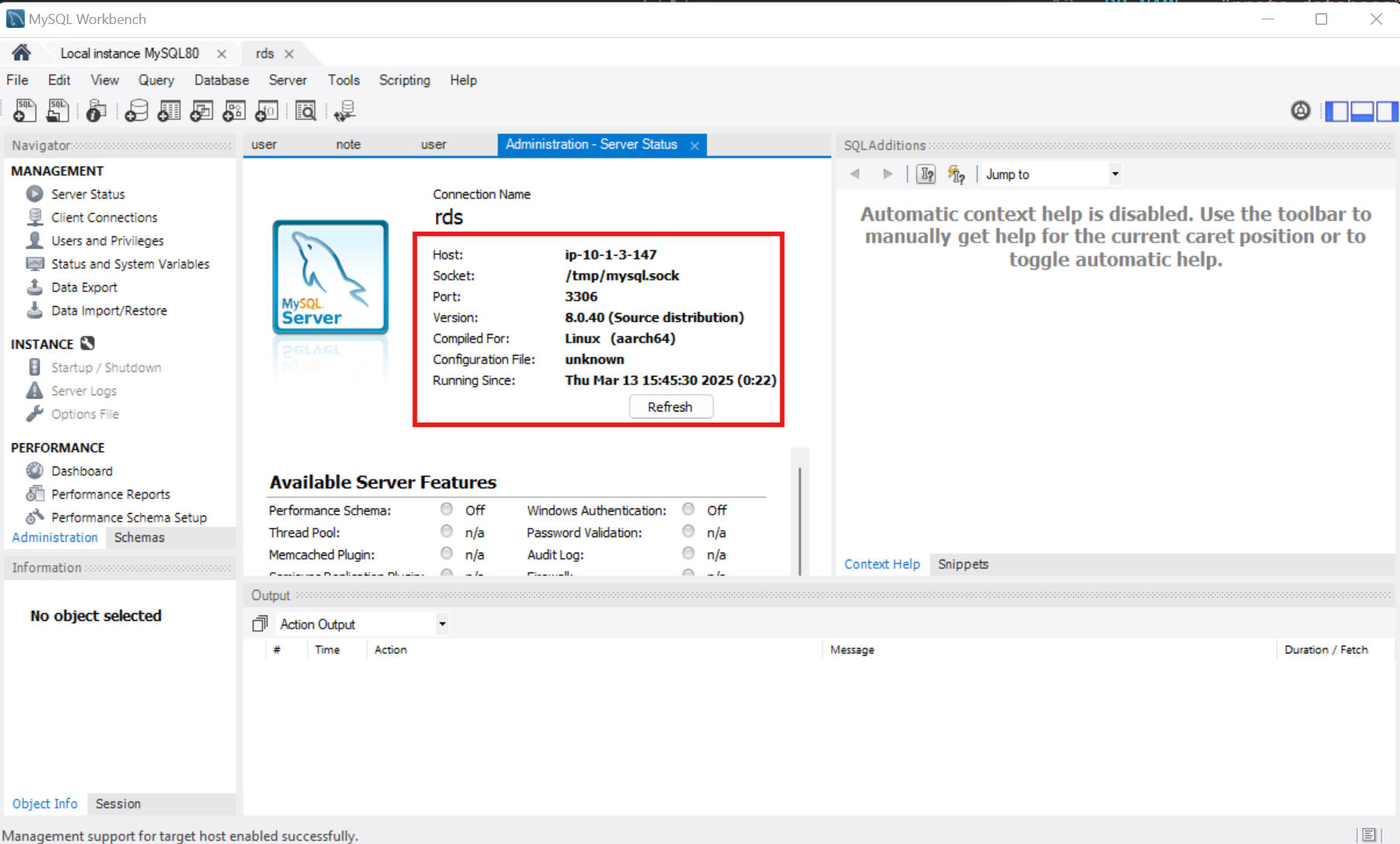

  4. Upon the database creation, I grab the endpoint from AWS RDS console and use MySQL Workbench test for connection and authentication.


  1. Update nnote-app with endpoint, DB_USERNAME="admin" and DB_PASSWORD="password"
#website/__init__.py
#------------------------------------------------------------------

db = SQLAlchemy()
DB_USERNAME = "admin"
DB_PASSWORD = "password"
DB_HOST = "AWS-RDS-Endpoint" # run from inside Docker
DB_NAME = "nnote_database"

#------------------------------------------------------------------

def create():
	app = Flask(__name__)
	app.config['SECRET_KEY'] = 'mysecretkey'
	url = f"mysql+pymysql://{DB_USERNAME}:{DB_PASSWORD}@{DB_HOST}/{DB_NAME}"
	app.config['SQLALCHEMY_DATABASE_URI'] = url

ECR

  1. To create a Elastic Container Repo ³, navigate to AWS Console -> Amazon Elastic Container Registry -> repository -> Create depository
  2. Configure:
    • Repository name = nnote-ecr/app
    • Image tag mutability = Mutable
    • Encryption = AES-256
  3. Create

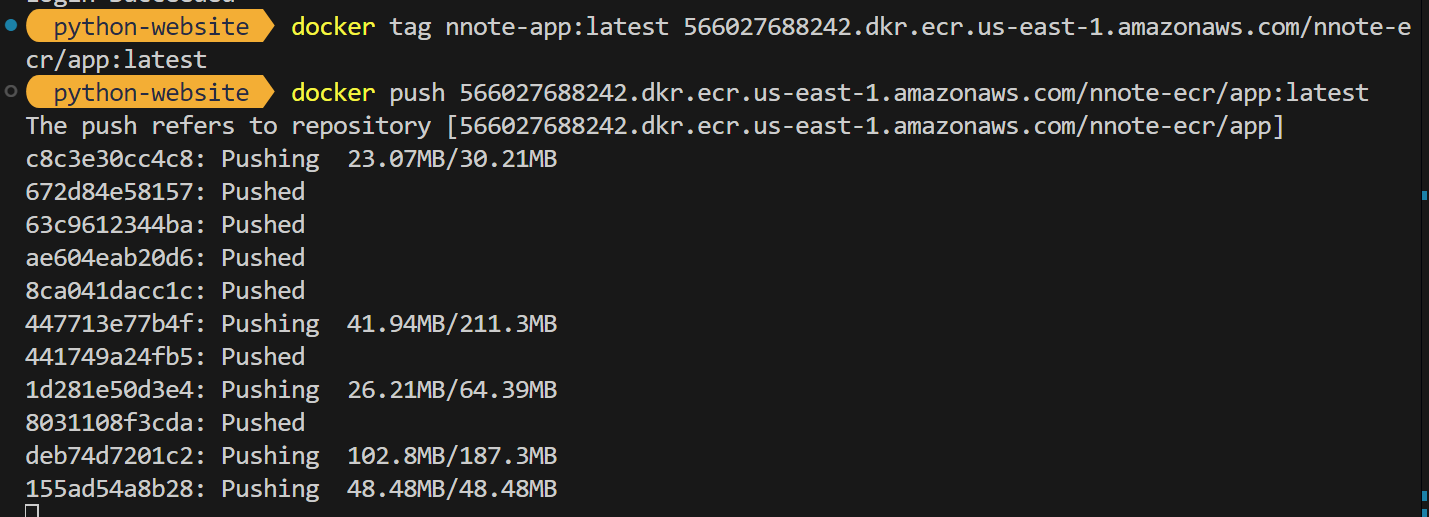

  4. Click our repo nnote-ecr.app -> View push commands -> follow the instruction from AWS to push my local Docker image to AWS ECR image
  5. I also grabbed the the Repo URI on the way out for later

ECS Cluster

  1. Navigate to AWS Console -> Amazon Elastic Container Service -> Create cluster
  2. Configure:
    • Cluster name = nnote-us-east-1-cluster
    • Infrastructure = AWS FarGate
  3. Create

ECS Task definition

  1. In AWS Elastic Container Service Console -> Task Definition
  2. Configure - Infrastructure:
    • Task definition family = nnote-td
    • Launch Type = AWS FarGate
    • Task execution role = ecsTaskExecutionRole
  3. Configure - Container - 1:
    • Name = nnote-container
    • Image URI = ${ERC’s URI from above}:latest
    • Essential container = Yes
    • Container port = 80

ECS Cluster Service

  1. From AWS Elastic Container Service console -> Cluster
  2. Click on our cluster nnote-us-east-1-cluster -> under Services tab -> Create
  3. Configure:
    • Launch type = FARGATE
    • Application type = Service
    • Family = nnote-td
    • Service name = nnote-service
  4. Create

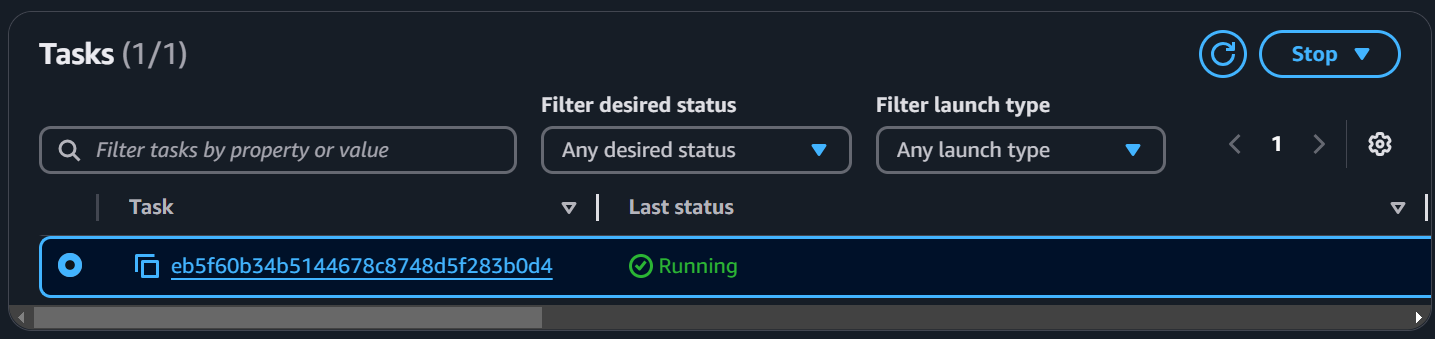

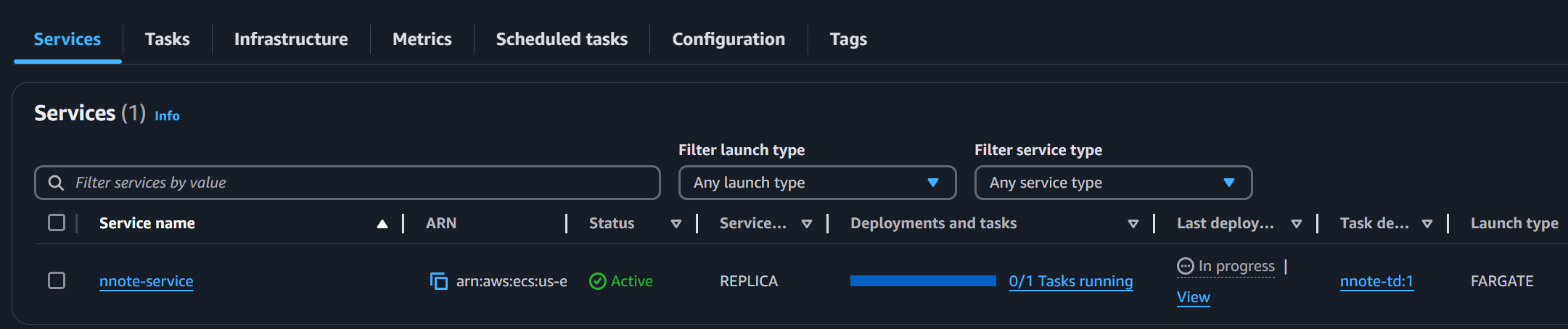

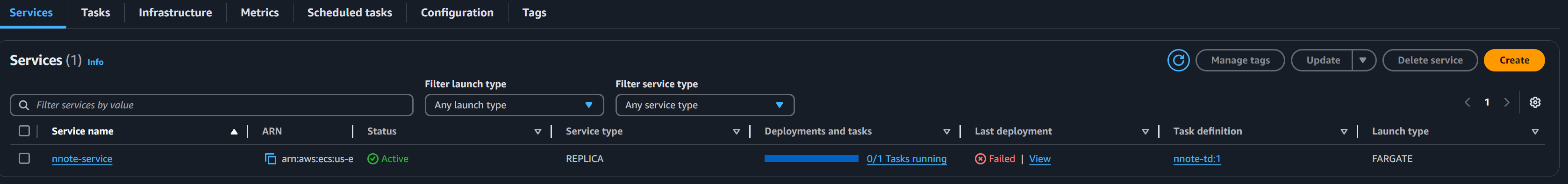

If everything works as intented, our task will turn 1/1 shortly

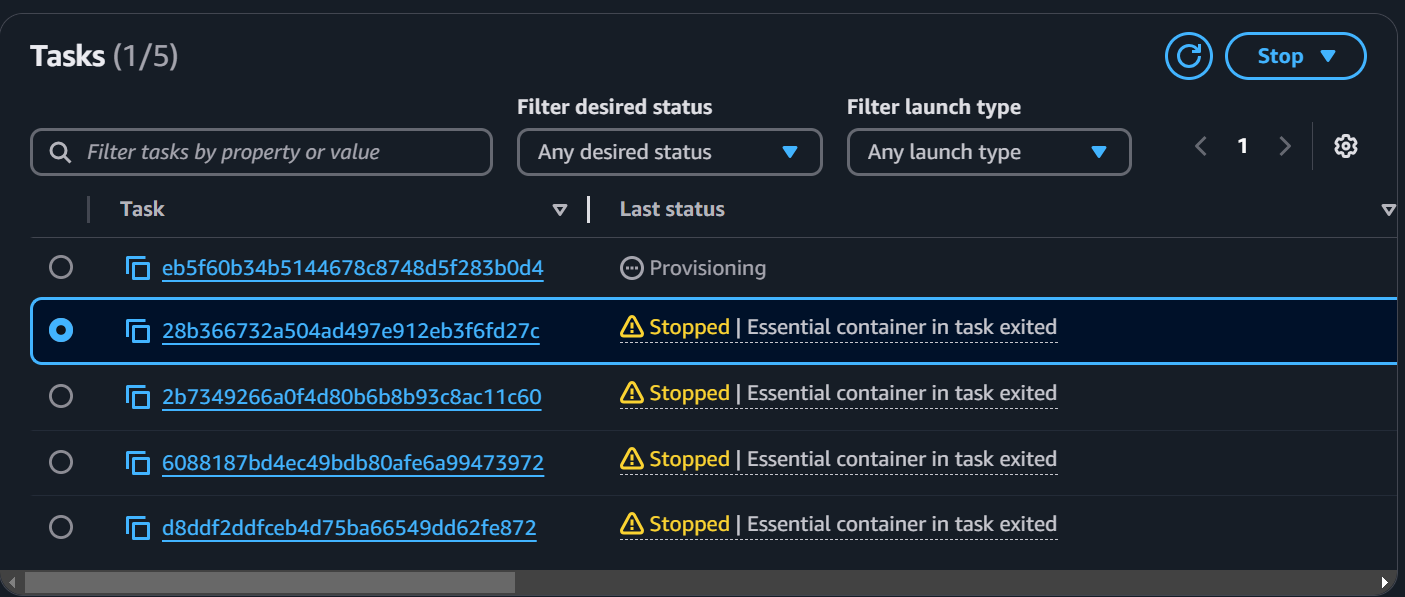

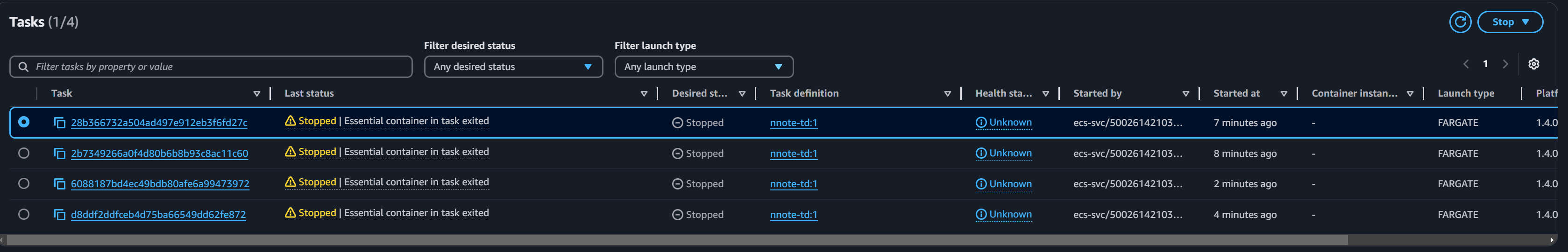

Nothing good come easily. Something wrong with my image that cause my task to exit. Time for some troubleshootings. image image

3b. Debug:

I went back to my local computer to run docker run to see if my image is still working properly and receive this error image

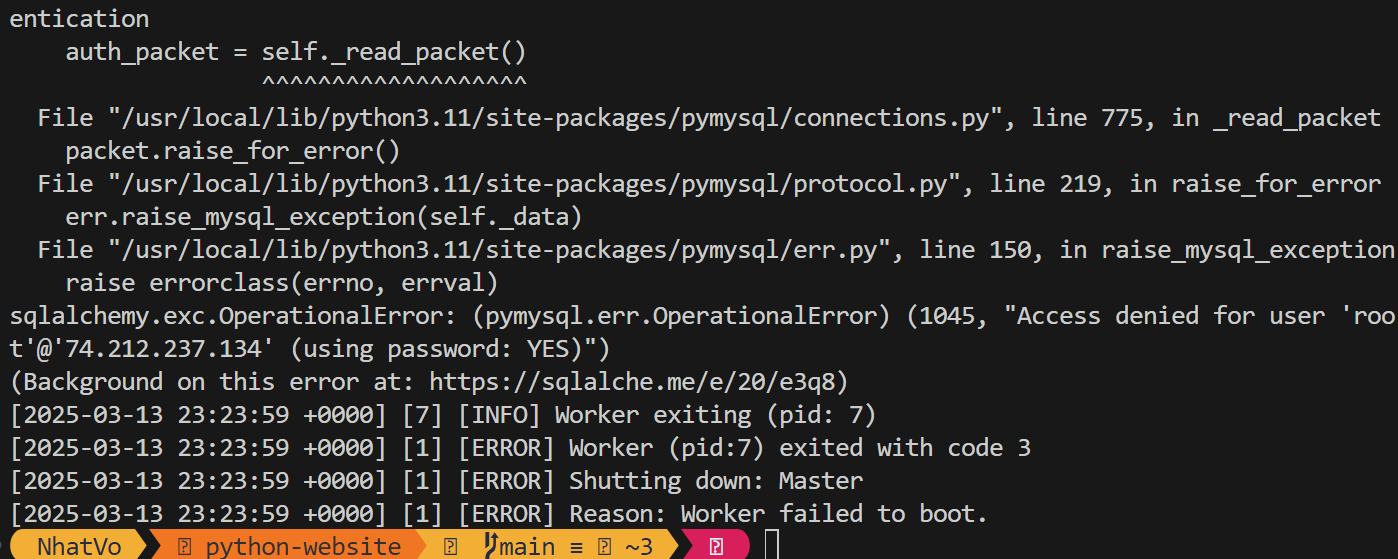

Error "Access denied for user 'root'@'74.212.237.134' (using password: YES)" means db authentication isn’t configured properly. I quickly check __init__.py and found my error. I rebuilt the container and run it locally. The error has gone. image


I push it to my ECR Repo and manually redeploy the Cluster service:

  1. Navigate AWS Elastic Container Service console -> Cluster
  2. nnote-us-east-1-cluster -> Services -> nnote-service
  3. Switch to Tasks tab -> Under Update service drop-down arrow > select Force new deployment

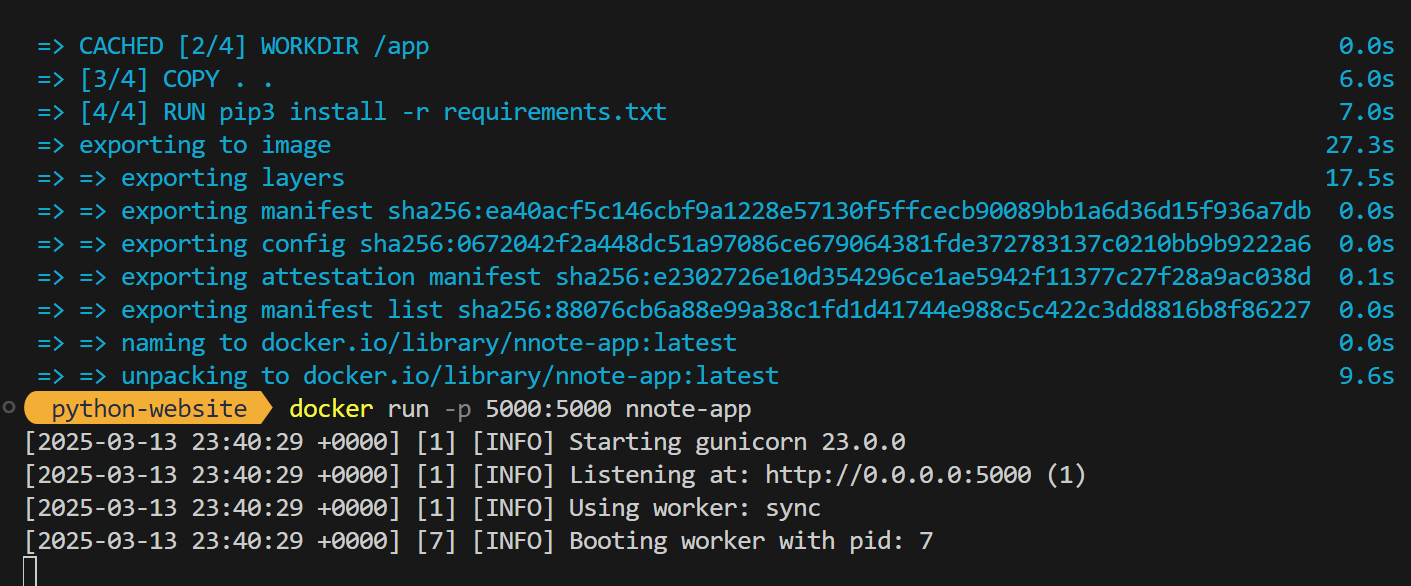

Finger cross… image

Voila! The image seems to be interacting with the Database without any issue now. image

3c. Testing:

Let’s test if nnote-app, first, we need the container public IP address

  1. Amazon Elastic Container Service -> Clusters -> nnote-us-east-1-cluster -> Services -> nnote-service
  2. Switch to Tasks tab -> Select task -> switch to Networking
  3. Copy Public Ip address
  4. Paste on my browser and add port 5000

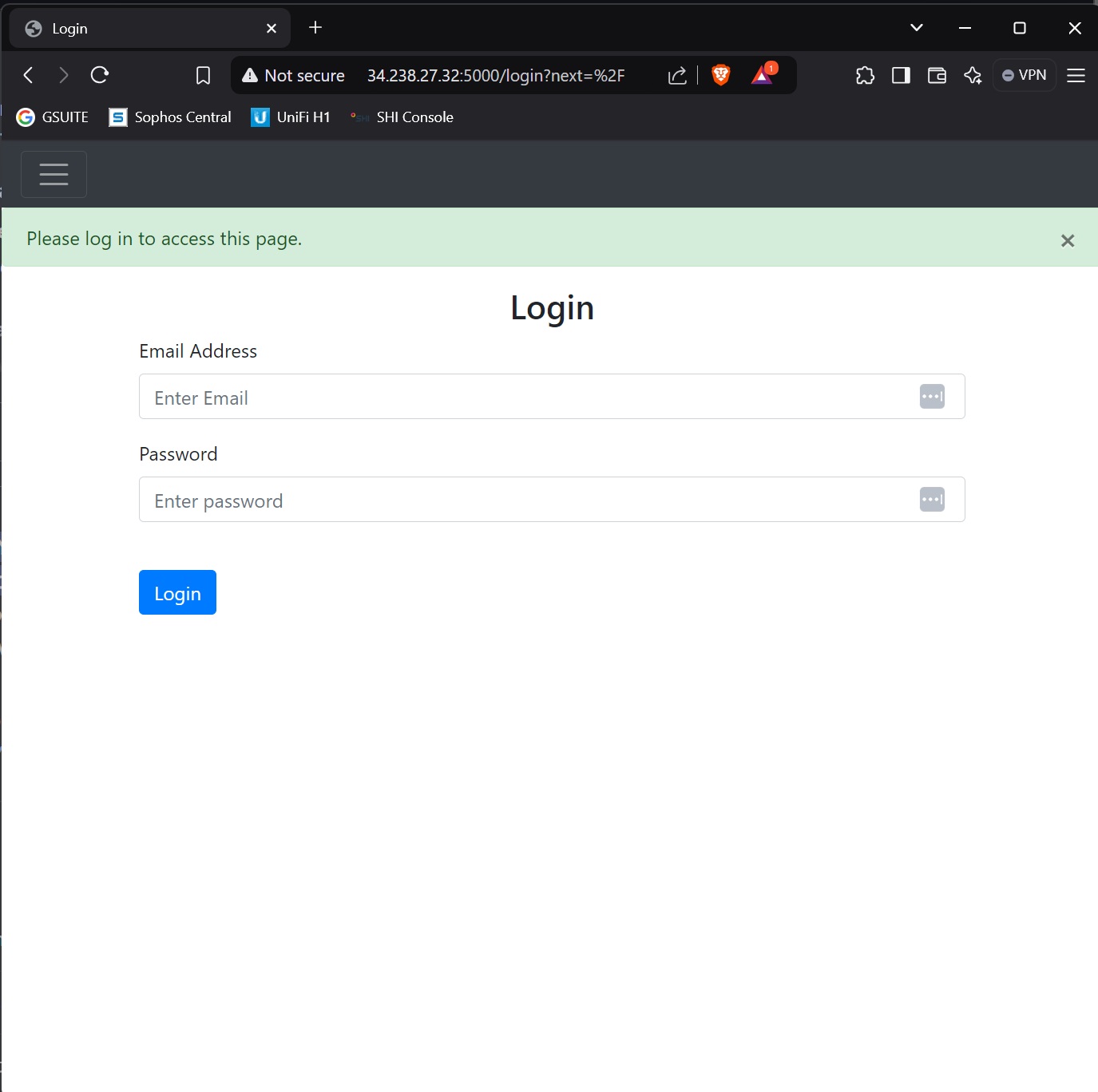

I can access my login screen! image

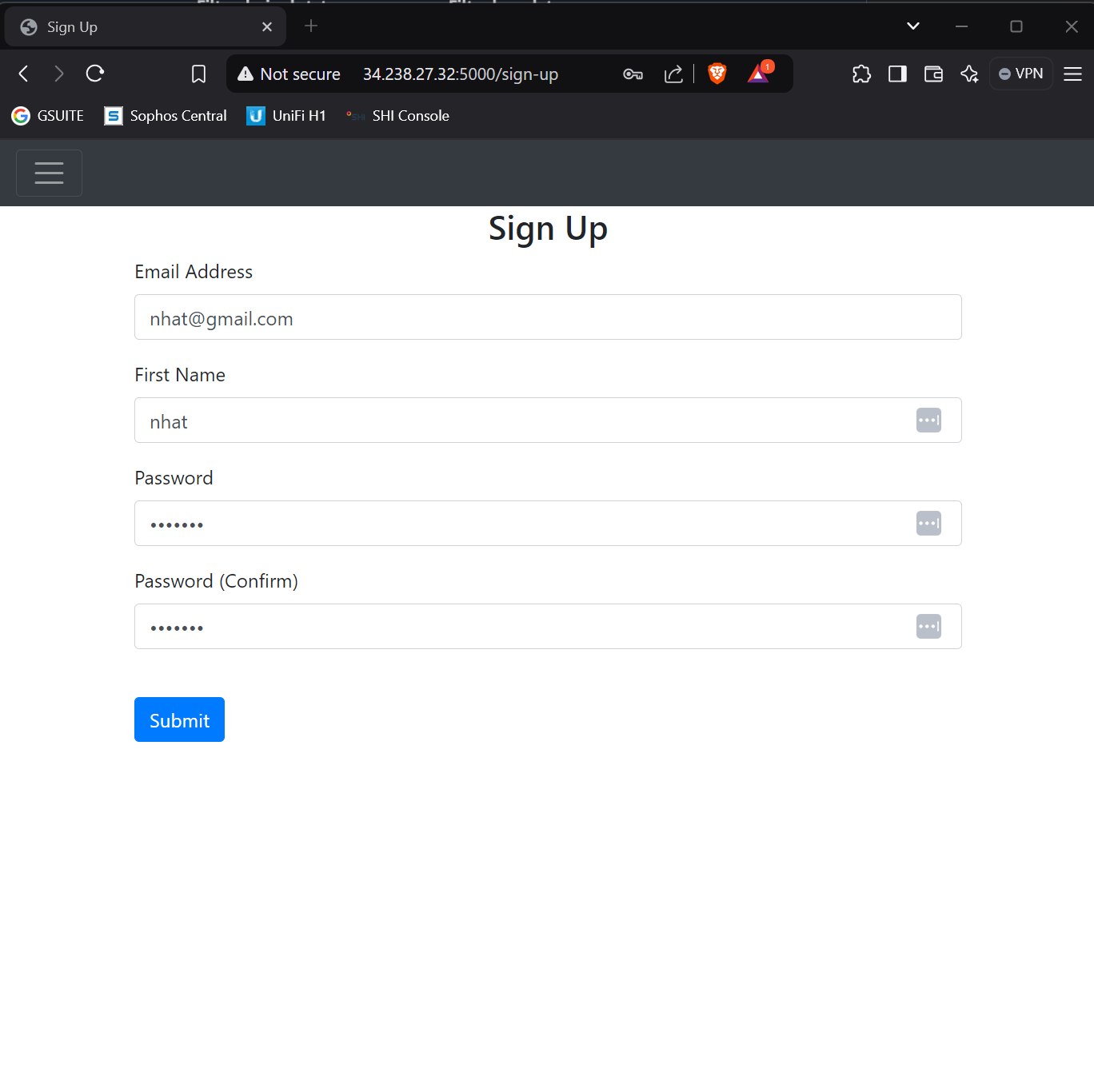

Let’s try sign-up… image

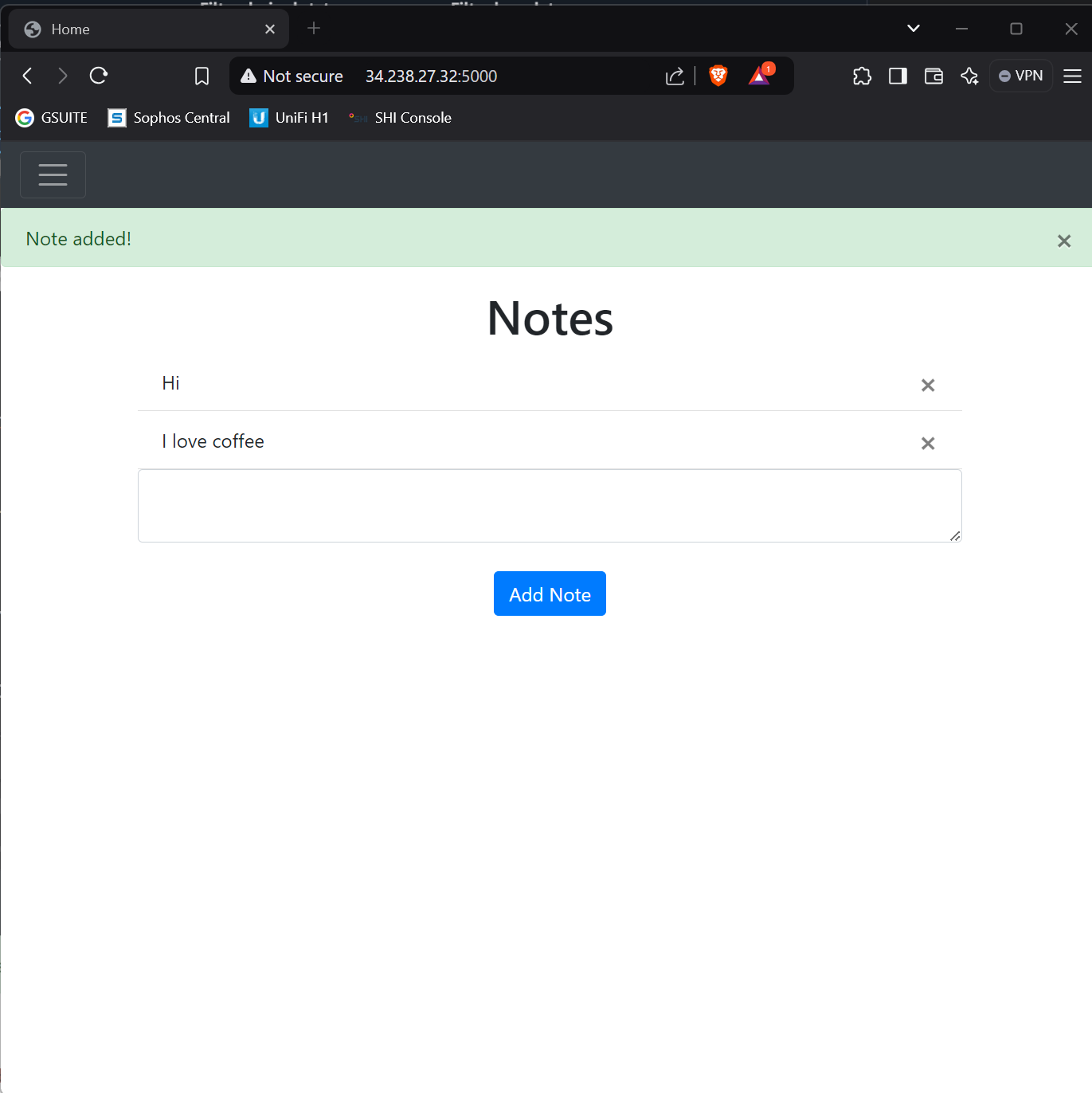

Then add some note… image

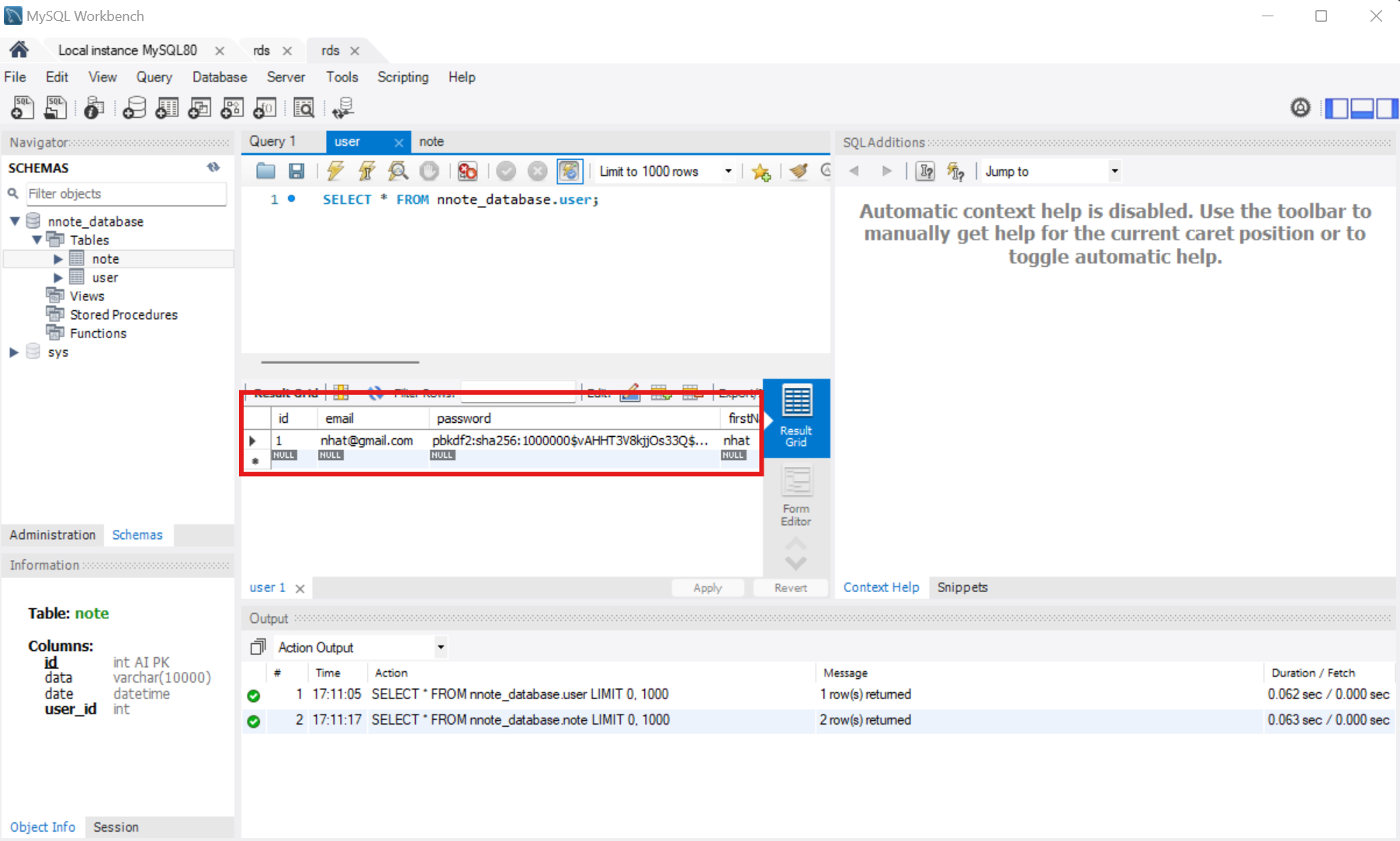

Let’s check our nnote_database.user on AWS RDS Database by navigate to MySQL Workbench > expand nnote_database > select user > enter this command SELECT * FROM nnote_database.user image

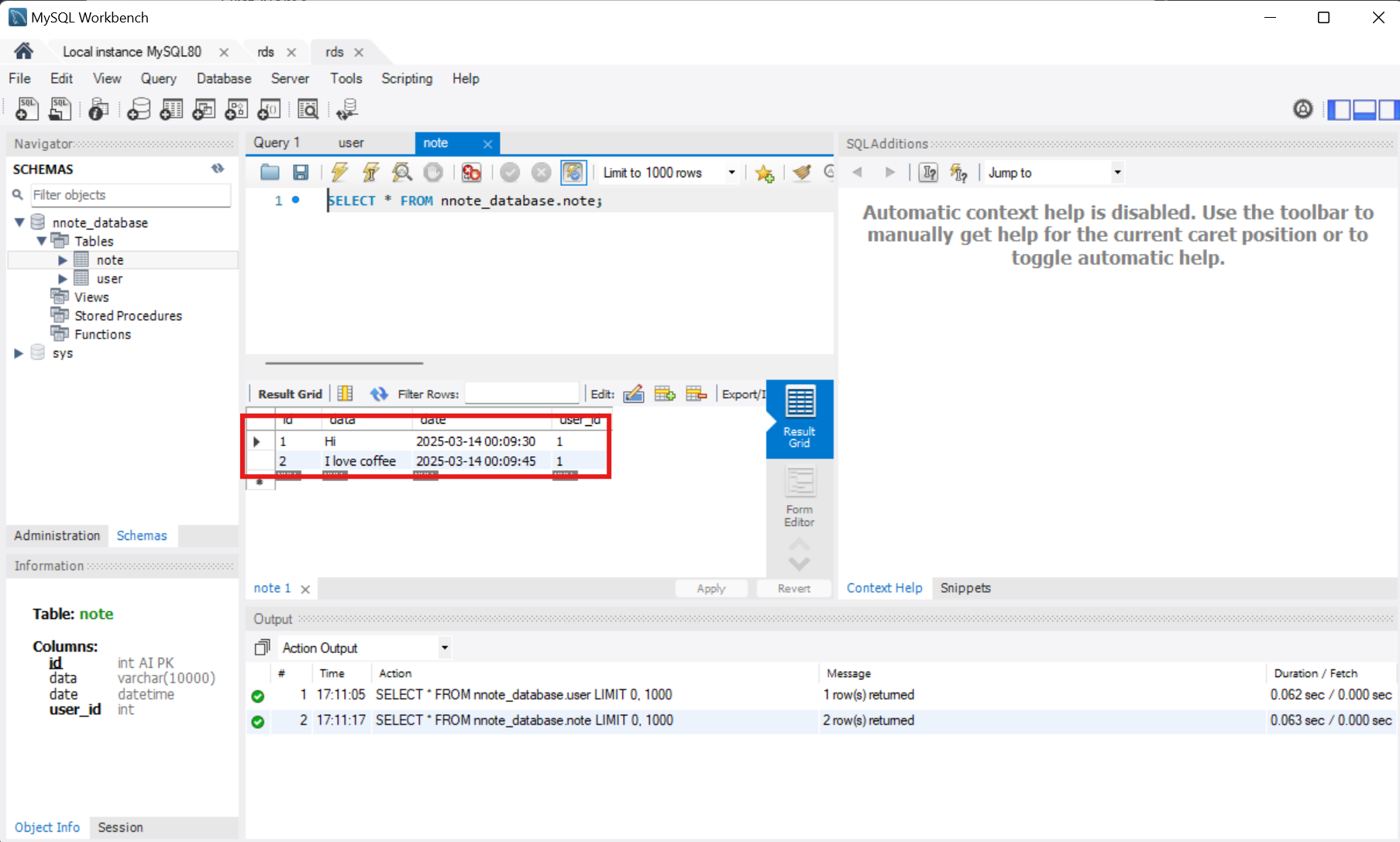

How about nnote_database.note? SELECT * FROM nnote_database.note image

Everything seems to be working as intented. But deploying this project involves a lot of manual work and the authentication between services are not secure. Let’s streamline the CI/CD and enhance the authentication method at Stage 4

Stage 4: Hosting on AWS using Terraform

I automate Stage 3 using Terraform but I still have to build and push Docker manually. I add my own VPC in network.tf.

# terraform/network.tf
resource "aws_vpc" "nnote" {
  cidr_block           = var.vpc_cidr
  enable_dns_hostnames = true

  tags = {
    Name = var.vpc_name
  }
}

resource "aws_internet_gateway" "nnote" {
  vpc_id = aws_vpc.nnote.id

  tags = {
    Name = "nnote_igw"
  }
}

resource "aws_subnet" "s1" {
  vpc_id            = aws_vpc.nnote.id
  cidr_block        = var.s1_cidr
  availability_zone = var.s1_az

  tags = {
    Name = "nnote_vpc_s1"
  }
}

resource "aws_subnet" "s2" {
  vpc_id            = aws_vpc.nnote.id
  cidr_block        = var.s2_cidr
  availability_zone = var.s2_az

  tags = {
    Name = "nnote_vpc_s2"
  }
}

resource "aws_route_table" "nnote" {
  vpc_id = aws_vpc.nnote.id

  route {
    cidr_block = "0.0.0.0/0"
    gateway_id = aws_internet_gateway.nnote.id
  }

  tags = {
    Name = "nnote_rt"
  }

  depends_on = [aws_internet_gateway.nnote]
}

resource "aws_route_table_association" "assoc1" {
  route_table_id = aws_route_table.nnote.id
  subnet_id      = aws_subnet.s1.id
}

resource "aws_route_table_association" "assoc2" {
  route_table_id = aws_route_table.nnote.id
  subnet_id      = aws_subnet.s2.id
}


and update variables.tf

# terraform/variables.tf
# NETWORK
variable "vpc_name" {
  default = "nnote_vpc"
  type    = string
}

variable "vpc_cidr" {
  default = "10.0.0.0/16"
  type    = string
}

variable "s1_cidr" {
  default = "10.0.1.0/24"
  type    = string
}

variable "s1_az" {
  default = "us-east-1a"
  type    = string
}

variable "s2_cidr" {
  default = "10.0.2.0/24"
  type    = string
}

variable "s2_az" {
  default = "us-east-1b"
  type    = string
}

variable "vpc_sg_name" {
  default = "nnote_vpc_sg"
  type    = string
}

This stage went smoothly and I didn’t encounter any issue which I was happy to cut it short to the Final Stage

Stage 5: Automate deployment using Github Actions

The goal of this stage is to transform my app into a ready-to-deploy application that can be use by anyone

5a. Github Actions Workflow:

  1. Copy repo to Github Actions Runner
  2. AWS OICD to authenticate runner with AWS
  3. Create S3 bucket to store Terraform backend tfstate file
  4. Deploy Terraform
  5. Capture Terraform Output
  6. Login AWS ECR
  7. Build and Push Docker Image to AWS ECR
  8. Force ECS Cluster Service’s redeployment
  9. Roll back if fail() so that I don’t have to clean up AWS Resources if something goes wrong, this is optional and I figure it would make my life so much better for testing

AWS OICD

I read ⁴ ⁵ to setup AWS OICD role. It seems very straight forward so I won’t document these steps. You will need to configre this from your AWS IAM using your Github token.


Injecting Secrets to Docker Image

I configure deploy.yml to pick up DB_NAME, DB_USERNAME, and DB_PASSWORD from the Github Actions Secrets.

To setup GHA Secrets

  1. Navigate to your Github repo
  2. Select Settings > Secrets and variables
  3. Configure 3 variable with the exact name as below:
    • DB_NAME= your-db-name (can be anything, this does not matter)
    • DB_USERNAME = your-db-username
    • DB_PASSWORD = your-db-password


Injecting DB_HOST (RDS endpoints) to Docker Image

Docker Image also needs the endpoints which is resulted from the Terraform’s deployment. I output endpoint using output.tf, capture and exported it into Github Actions Environment.

# terraform/output.tf
output "db_endpoint" {
  value = aws_db_instance.nnotedb.endpoint
}

I also output ecr_uri, cluster_arn, service_name, and region for login ECR, push Docker image and reploy cluster service later on.

# .github/workflows/deploy.yml
- name: Export Terraform output
        id: tf
        if: success()
        run: |
          echo "TF_EURI=$(terraform output -raw ecr_uri)" >> $GITHUB_ENV
          echo "TF_CARN=$(terraform output -raw cluster_arn)" >> $GITHUB_ENV
          echo "TF_SN=$(terraform output -raw service_name)" >> $GITHUB_ENV
          echo "TF_REGION=$(terraform output -raw region)" >> $GITHUB_ENV
          HOST=$(echo "$(terraform output -raw db_endpoint)" | cut -d ':' -f1)
          echo "TF_ENDPOINT=$HOST" >> $GITHUB_ENV
        working-directory: ./terraform


Login AWS ECR

- name: Log in to ECR
	run: aws ecr get-login-password --region us-east-1 | docker login --username AWS --password-stdin $TF_EURI

Build and Push Docker Along with 4c and 4d, I inject these 4 variables while building the Docker image

- name: Build Docker
	run: |
		docker build \
		--build-arg DB_USERNAME=${{ secrets.DB_USERNAME }} \
		--build-arg DB_PASSWORD=${{ secrets.DB_PASSWORD }} \
		--build-arg DB_NAME=${{ secrets.DB_NAME }} \
		--build-arg DB_HOST=${{ env.TF_ENDPOINT }} \
		-t nnote-app .
- name: Tag Docker
	run: docker tag nnote-app:latest $TF_EURI:latest

- name: Push Docker
	run: docker push $TF_EURI:latest

Redeploy Cluster Service

- name: Force Redeployment ECS
	run: aws ecs update-service --cluster $TF_CARN --service $TF_SN --force-new-deployment --region $TF_REGION

Roll back if fail()

- name: Auto clean up if Apply failed
	if: failure()
	run: |
		terraform destroy --auto-approve -var='db_name="a"' -var='db_password="b"' -var='db_username="c"'
		aws s3 rm s3://nnote-tfstate-031225 --recursive
		aws s3 rb s3://nnote-tfstate-031225 --force
	working-directory: ./terraform

5b. Debugging:

I ran into a couple of issues

Issue 1: RDS Endpoint from Terraform output contains :3306 Solution: cut the :3306 from the string

# .github/workflows/deploy.yml
HOST=$(echo "$(terraform output -raw db_endpoint)" | cut -d ':' -f1)
echo "TF_ENDPOINT=$HOST" >> $GITHUB_ENV

Issue 2: Container cannot authenticate with Database unless I use MySQL Workbench to drop the schemas and redeploy Cluster Service Solution: remove db_name = var.db_name when create aws_rds_instance

Before…

resource "aws_db_instance" "nnotedb" {
  db_name                = var.db_name
  allocated_storage      = 20
  engine                 = "mysql"
  engine_version         = "8.0"
  instance_class         = var.db_instance_class
  username               = var.db_username
  password               = var.db_password
  vpc_security_group_ids = [aws_security_group.nnote_vpc_sg.id]
  db_subnet_group_name   = aws_db_subnet_group.nnotedb.name
  skip_final_snapshot    = true
  publicly_accessible    = true
}

After…

resource "aws_db_instance" "nnotedb" {
  allocated_storage      = 20
  engine                 = "mysql"
  engine_version         = "8.0"
  instance_class         = var.db_instance_class
  username               = var.db_username
  password               = var.db_password
  vpc_security_group_ids = [aws_security_group.nnote_vpc_sg.id]
  db_subnet_group_name   = aws_db_subnet_group.nnotedb.name
  skip_final_snapshot    = true
  publicly_accessible    = true
}

References

[1] MYSQL vs SQLite

https://www.greengeeks.com/blog/sqlite-vs-mysql/#:~:text=Ultimately%2C%20SQLite%20is%20a%20lightweight,go%2Dto%20for%20RDBMS%20solutions

go back

[2] Gunicorn

https://flask.palletsprojects.com/en/stable/deploying/gunicorn/

go back

[3] AWS ECS

https://docs.aws.amazon.com/AmazonECS/latest/developerguide/create-container-image.html

go back

[4] AWS OICD

https://docs.aws.amazon.com/IAM/latest/UserGuide/id_roles_providers_create_oidc.html

go back

[5] GitHub Actions and AWS OICD

https://docs.aws.amazon.com/IAM/latest/UserGuide/id_roles_providers_create_oidc.html

go back
