Using Github Action to generate AWS Credential Report

I. Introduction

This project is inspired by one of my dear friend. Instead of using the AWS Console to generate a credential report, we would set up a runner on GitHub Actions to automate this task. It’s a very cool experiment, and I hope that by the end, I can apply and scale this concept into a part of a bigger project down the road.

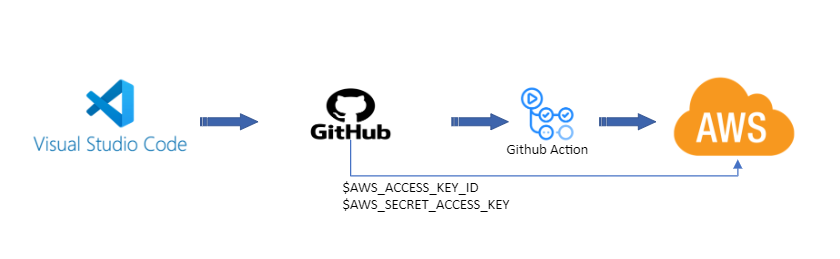

II. Our Game-plan

We will leverage Github Action to execute a set of commands to generate AWS Credential Report, download it, decode, pipe the content into csv file and finally copy to a existing S3 bucket.

Tools that we need for this project:

AWS CLI

https://docs.aws.amazon.com/cli/latest/userguide/getting-started-install.html

GitHub CLI

https://cli.github.com/

III. Create an AWS CLI user + proper permission

Steps:

Create custom IAM policy on AWS Console
Create CLI user
Attach the custom IAM Policy to CLI user
Create a CLI Access Key
Confiure AWS Credential on local terminal

What permission do you need?
- Generate Credential Report iam:GenerateCredentialReport
- Download Credential Report iam:GetCredentialReport
- Write to S3 S3:PutObject
- List S3 bucket S3:GetPbject

1. Create custom IAM policy on AWS Console:

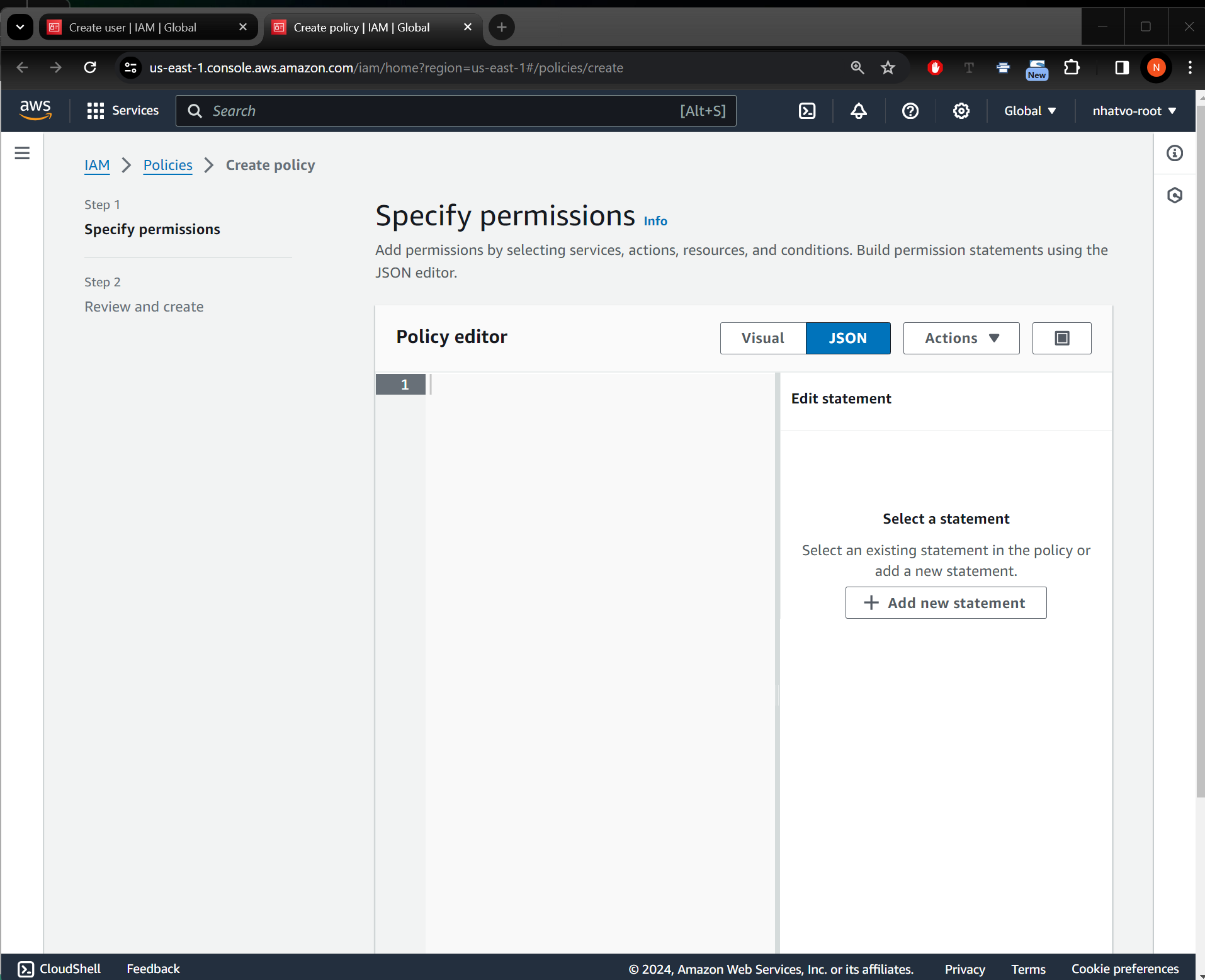

AWS Console > IAM > Under Access management > Policies

Copy and paste the following JSON policy to the policy editor. You can also create a seperate policy for S3:PutObject where it target one of your bucket.

{
	"Version": "2012-10-17",
	"Statement": [
		{
			"Sid": "VisualEditor0",
			"Effect": "Allow",
			"Action": [
                          "iam:GenerateCredentialReport",
                          "s3:PutObject",
                          "iam:GetCredentialReport",
                          "s3:GetObject"
			],
			"Resource": "*"
		}
	]
}

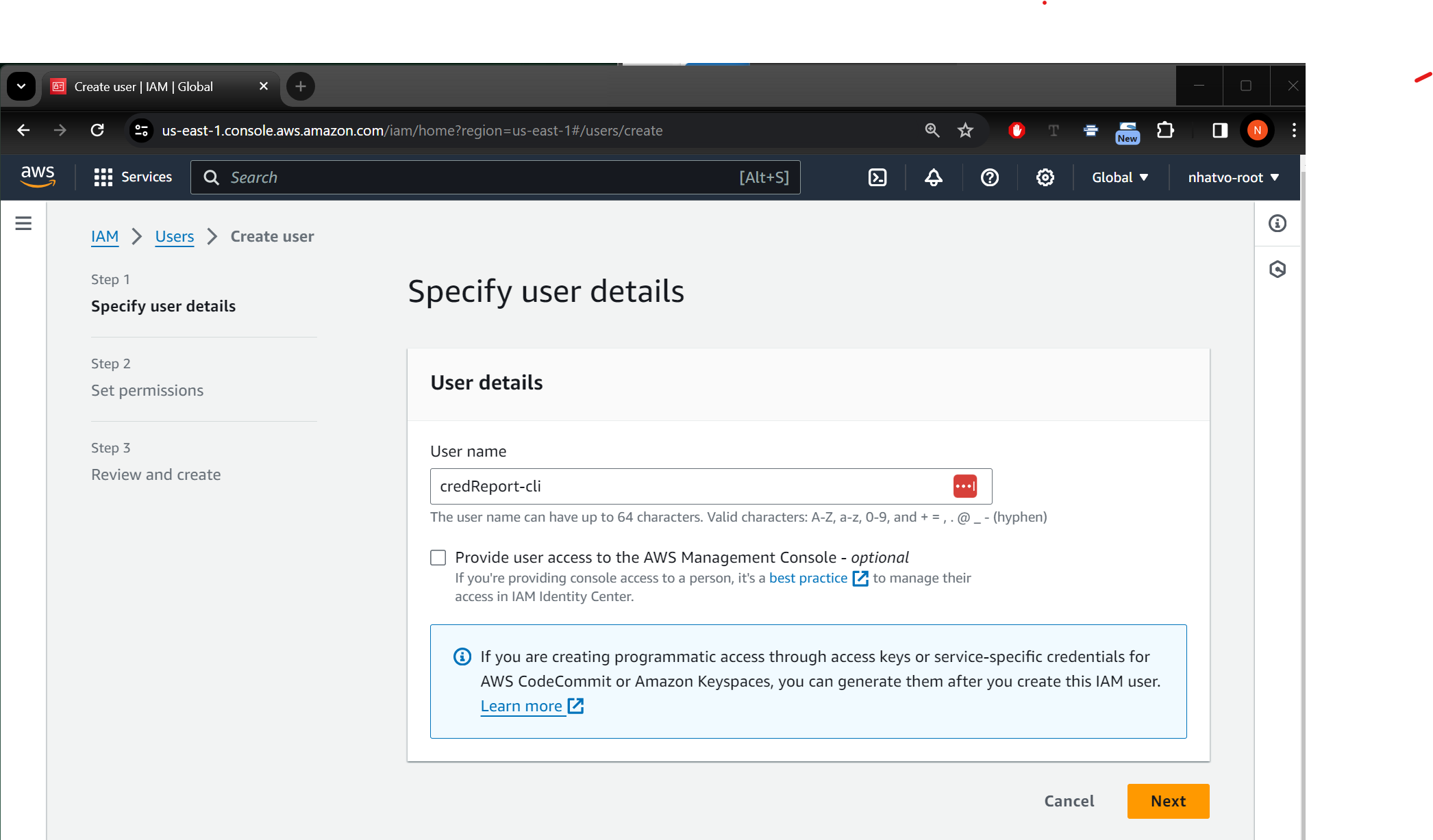

2. Create CLI user Create a CLI user via AWS Console > IAM > Under Access management > Users > Create user

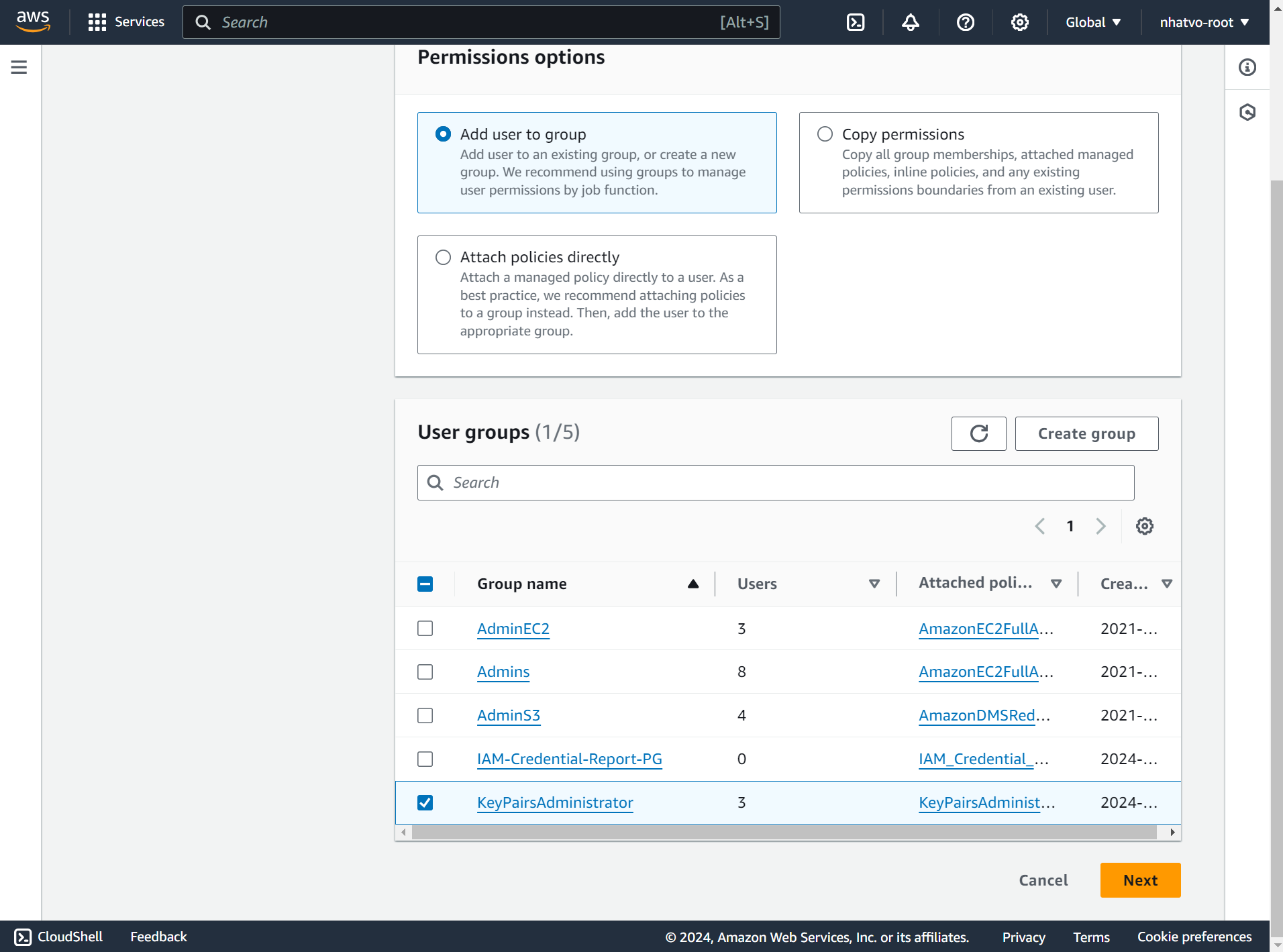

3. Attach the custom IAM Policy to CLI user Select CLI User > Under Permissions > Permissions policies > Add permission > Select our custom policies

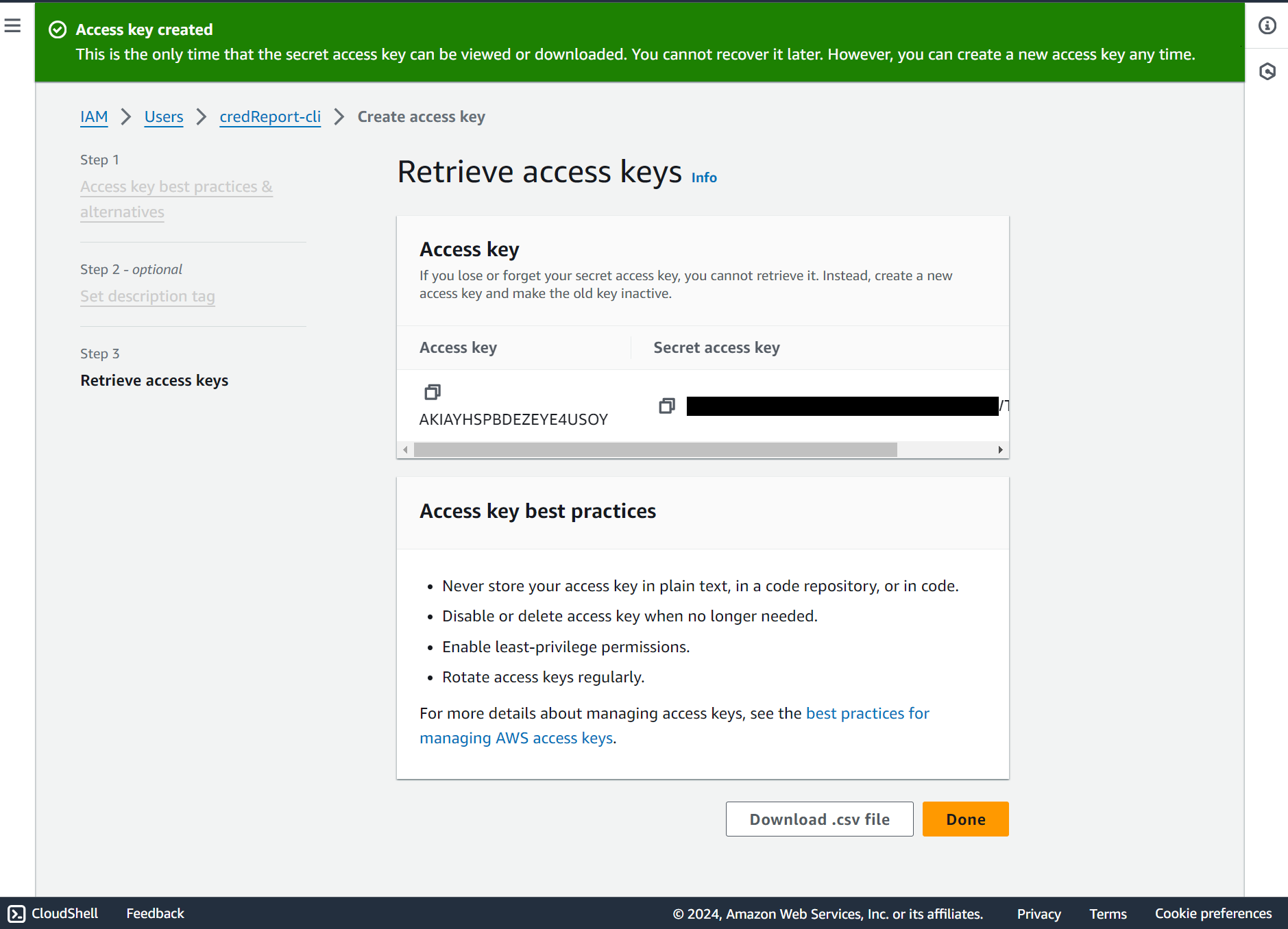

4. Create a CLI Access Key Select CLI User in AWS Console > Security credentials Under Access keys > Create access key > Select Command Line Interface (CLI) > tick the box Confirmation > Next > Create access key
Note down the Access key and Secret access key, you will need these later

5. Confiure AWS Credential on local terminal
Go to local terminal or Ctrl + Shift +` in vscode to open terminal (my default terminal is PowerShell) > enter this command

aws configure

Copy and paste your CLI user access key
Copy and paste your CLI user secret access key
Enter default region (mine is us-west-1)
Enter default format (mine is json)

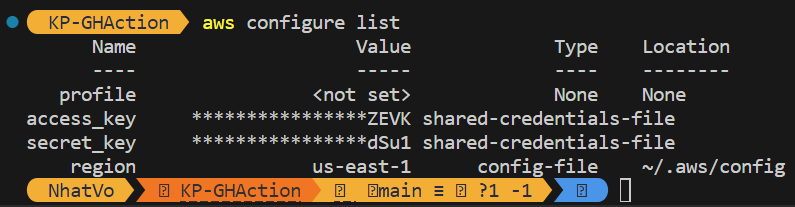

Verify your input by entering this command

aws configure list

IV. GitHub

Steps:

Create Github account from their website if you don’t have one ready
Create a repository
Create secret environment
Create AWS access key and secret access key secrets

1. Create Github account from their website if you don’t have one ready

Go to their website and sign-up

https://github.com/

2. Create a repository

You can create a new repo from Github web console or using CLI: Login

gh auth login

Create new repo

gh repo create

If you create repo from web, make sure to clone it to your local

gh repo clone

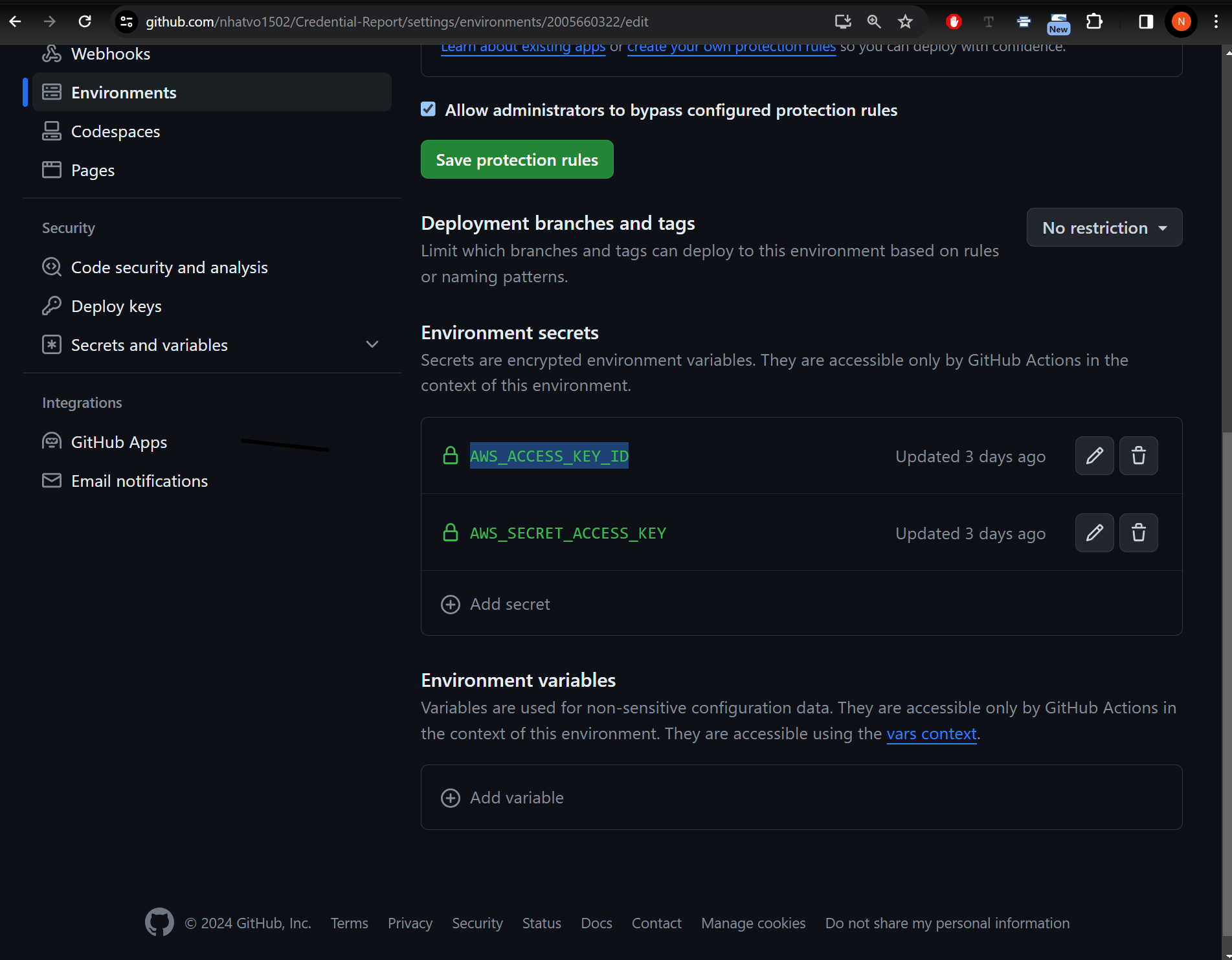

3. Create Github Action AWS Secrets

Go to github.com > Your project repository > Settings > under Security > Secrets and variables > Actions

New Environment > Create environment name Dev > Click on Dev

Add secret > Name it AWS_ACCESS_KEY_ID > Copy and paste your CLI Access Key from the note

Add secret > Name it AWS_SECRET_ACCESS_KEY > Copy and paste your CLI Secret Access Key from the note

V. VSCODE extension**

I use VSCode along with these extensions

GitHub Action will support syntax for yml file.

VI. Github Action

Steps:

Create .github/workflows
Create yaml files
Configure yaml files
Code explains
Commit to Github
Test

1. Create .github/workflows

Go to the repo folder and create this folder structure

mkdir .github
cd .github
mkdir workflows

Create action.yml

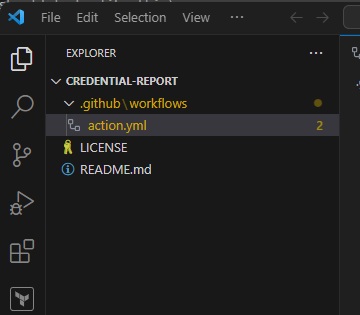

It should look like this

3. Configure yaml files

Open action.yml using vscode

Copy and paste this code block

name: Automate Credential Report
on:
  # trigger manually
  workflow_dispatch:

jobs:
  generate-export-credential-report:
    runs-on: ubuntu-latest
    environment: Dev

    steps:
      - name: Verify aws
        run: aws --version

      - name: Configure AWS Credentials
        env:
          AWS_ACCESS_KEY_ID: ${{ secrets.AWS_ACCESS_KEY_ID }}
          AWS_SECRET_ACCESS_KEY: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
          AWS_DEFAULT_REGION: 'us-east-1'
        run: |
          mkdir -p ~/.aws
          echo "[default]" > ~/.aws/credentials
          echo "aws_access_key_id=${AWS_ACCESS_KEY_ID}" >> ~/.aws/credentials
          echo "aws_secret_access_key=${AWS_SECRET_ACCESS_KEY}" >> ~/.aws/credentials
          echo "region=${AWS_DEFAULT_REGION}" >> ~/.aws/credentials

      - name: Verify AWS Credential
        run: aws configure list

      - name: Verify s3 permission
        run: aws s3 ls

      - name: Generate Credential Report
        run: aws iam generate-credential-report

      - name: Wait for 5 second
        run: sleep 5

      - name: Retrieve report
        run: report_content=$(aws iam get-credential-report --query 'Content' --output text)

      - name: Decode report
        run: report_text=$(echo "$report_content" | base64 -d)

      - name: Save report to csv file
        run: echo "$report_text" > credential-report.csv

      - name: Copy the report to s3
        run: aws s3 cp ./credential-report.csv s3://keypair-1234

4. Code explains

We will start with giving this action a name

name: Automate Credential Report

The on code block will determine the trigger condition, in this case, work_dispatch mean manual trigger. Read more on on:

https://docs.github.com/en/actions/using-workflows/workflow-syntax-for-github-actions

on:
    workflow_dispatch

The jobs structure should be

jobs:
    build:
        runs-on: *The machine that you want the jobs to be ran on, we call it runner*
        environment: *Environment to store our secret on git hub*

        steps:
            - name: *Name of each step
              run: *bash command*

Using this understanding, it will translate our code above into

jobs:
  generate-export-credential-report: *our build name*
    runs-on: ubuntu-latest *running on abuntu with latest update*
    environment: Dev *Our Github secret environment Dev*

All ubuntu-latest on github action pre-installed with AWS CLI, we just want to verify if this is true by verify aws version

- name: Verify aws
        run: aws --version

Login AWS CLI user to this runner using AWS Access Key and Secret Access Key that we have saved into our note above. Instead of writing our secret key to the yml, we will be passing it from our Github secret environment which I will be showing in a bit.

- name: Configure AWS Credentials
        env:
          AWS_ACCESS_KEY_ID: ${{ secrets.AWS_ACCESS_KEY_ID }}
          AWS_SECRET_ACCESS_KEY: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
          AWS_DEFAULT_REGION: 'us-east-1'
        run: |
          mkdir -p ~/.aws
          echo "[default]" > ~/.aws/credentials
          echo "aws_access_key_id=${AWS_ACCESS_KEY_ID}" >> ~/.aws/credentials
          echo "aws_secret_access_key=${AWS_SECRET_ACCESS_KEY}" >> ~/.aws/credentials
          echo "region=${AWS_DEFAULT_REGION}" >> ~/.aws/credentials

Verify our credential

- name: Verify AWS Credential
        run: aws configure list

This step is optional since I only include S3:PutObject in the policy. To be able to verify if we have permision to s3, we also need S3:GetObject.

- name: Verify s3 permission
        run: aws s3 ls

Generate AWS Credential Report

- name: Generate Credential Report
  run: aws iam generate-credential-report

Sleep for 5 to make sure the AWS finish generate the report before we can download, if we try to download right after generate, there is a chance the report has not yet been created therefore the script will timeout

- name: Wait for 5 second
  run: sleep 5

Download the report into a variable report_content

- name: Retrieve report
  run: report_content=$(aws iam get-credential-report --query 'Content' --output text)

Since the content we just downloaded is encrypted Base64, we need to decode it

- name: Decode report
  run: report_text=$(echo "$report_content" | base64 -d)

Save it as csv file

- name: Save report to csv file
  run: echo "$report_text" > credential-report.csv

Then copy it to S3

- name: Copy the report to s3
  run: aws s3 cp ./credential-report.csv s3://keypair-1234

5. Commit to Github

Enter this command to commit the code to github

git add *.*
git commit -m 'my first commit'
git push

Go to github.com > your repo and check if your code is there

Go to Actions tab > if the folder structure .github/workflows/action.yml was done right, you should see this

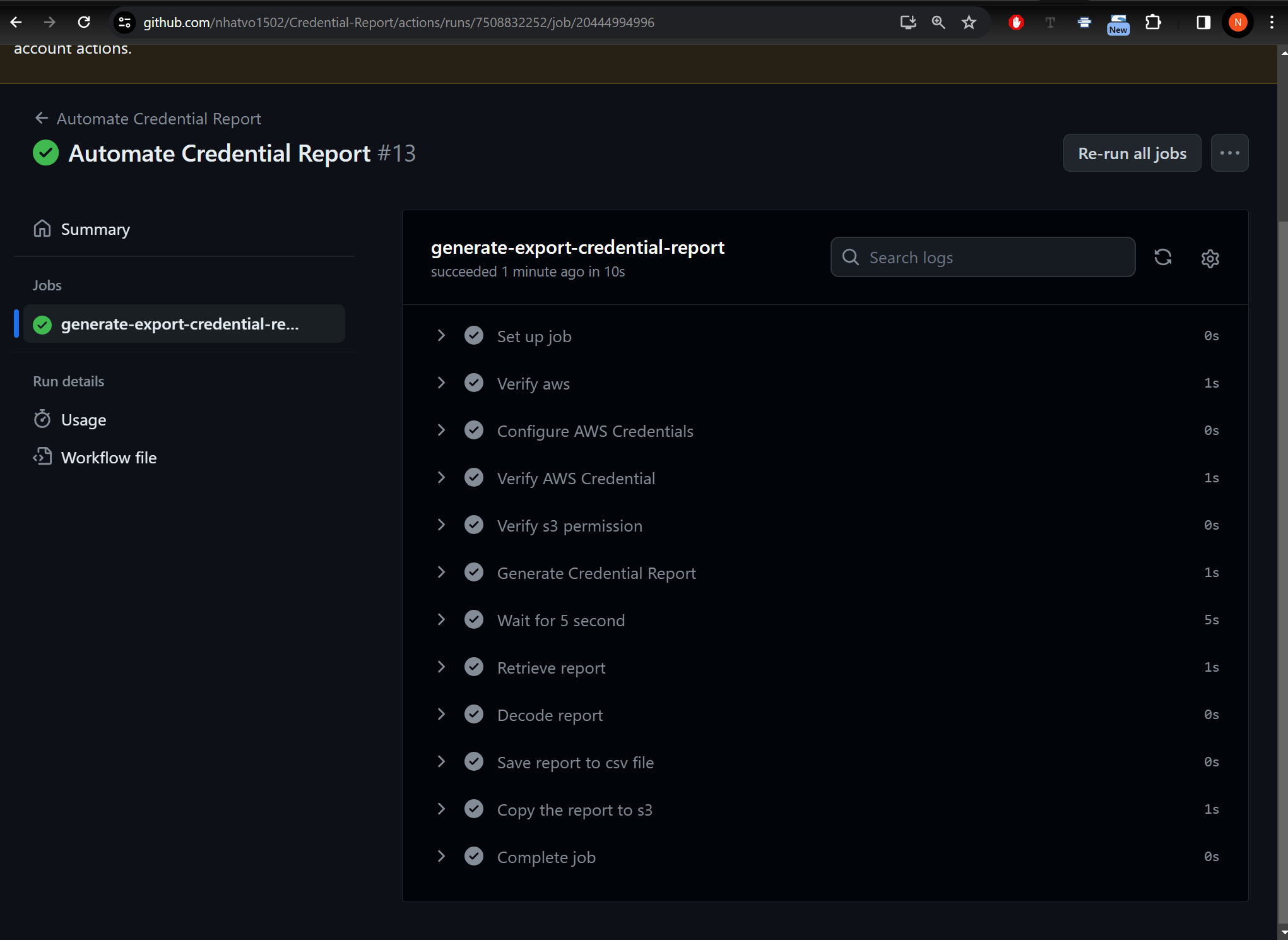

Drop down Run workflow button > Run workflow > Click onto the workflow and see all the steps are executing in real time

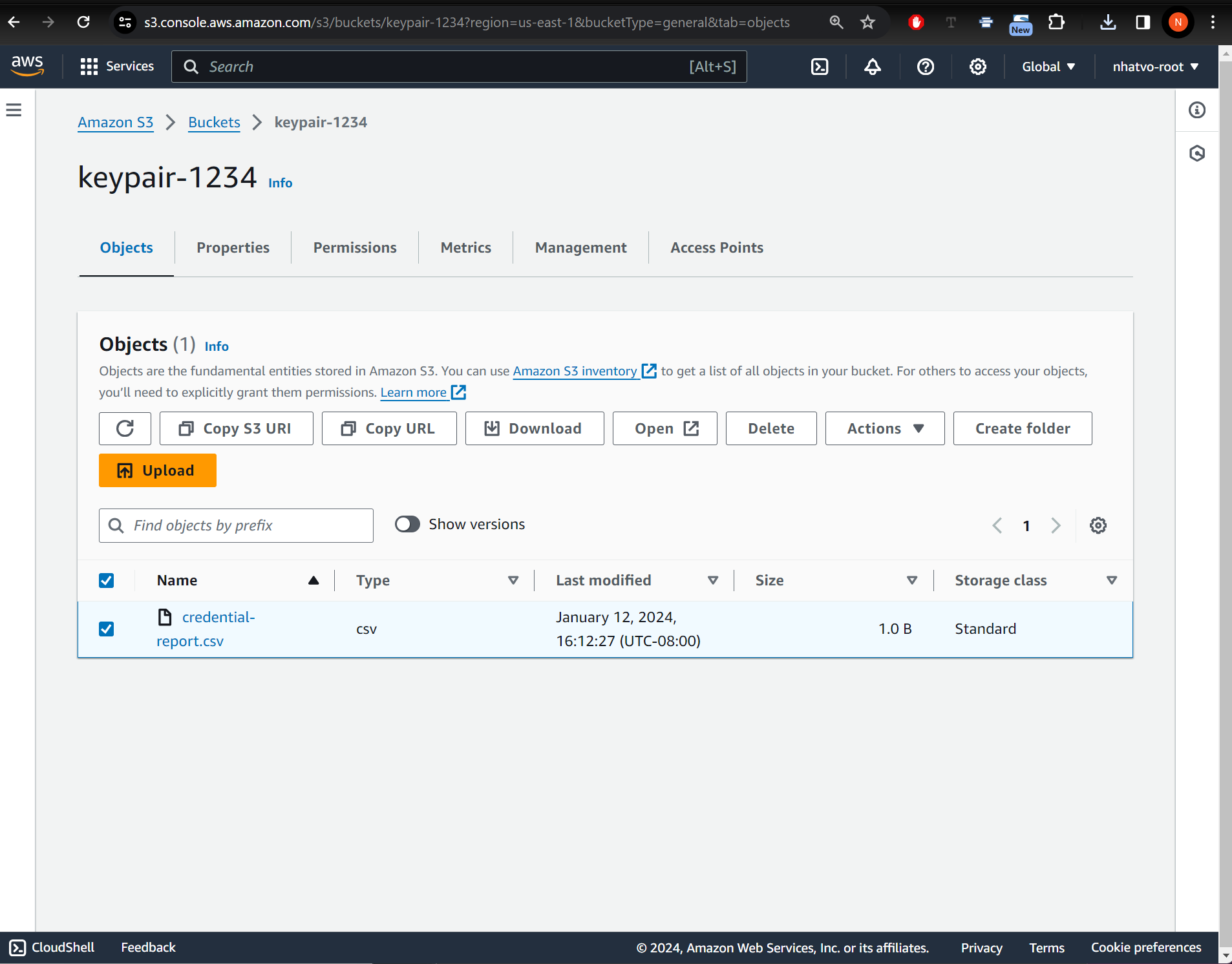

If all the steps are succesfully executed > go to AWS Console > S3 > your bucket > you should see your report

Download it and open with excel to see if the decoding works
